Disposable Tableware Machines

High Speed Paper Cup Making Machine

  • Product ID:Disposable Tableware Machines
  • QQ:
  • Phone: +86 15359530909
  • Tel: +86 1535 9530909
  • Email: info@feisimachine.com
  • Time: 2022-08-21 21:21
  • INQUIRY

High Speed Automatic Paper Cups Making Machine






Item Main Specifications
Machine Model FS-PC-3-16OZ
Cups Size 3-16oz
Top O.D. 45-90
Bottom O.D. 32-70
Height: 32-135mm
Bottom Height: 4-10mm
Raw Materials Kraft Paper Coating with PE/PLA (Single Side or Double Sides Coating)
Kraft Paper or Pulp Paper
Cups Body: Die-cut sheets
Cups Bottom: Roll Type
Thickness/GSM of Paper Thickness of Paper:0.345-0.455mm
GSM of Paper: 150-300g/m²
Production Speed 75-90 Cups/min(9oz Cups)
we have higher speed model also !
Cups Body Bonding Way By Ultrasonics Welding Head
Cups Bottom Knurling By Hot-Air Heating
Control System Standard: China Top Brand: Innovance
Mitsubishi Japan can be ordered!
Installation Total Power 6-9KW
Voltage 380V,50Hz,3Phase
220V,50Hz,Signle Phase
Other voltage can be ordered!
Compressor Air Supply 0.6-0.8MPa、0.4m³/min
Prepared by Customer
Machine Size Machine:3000 x 1600x 1900mm
Cups Collection Shelf:
1100 x 600x 1900mm
Machine Weight 2.5TONS

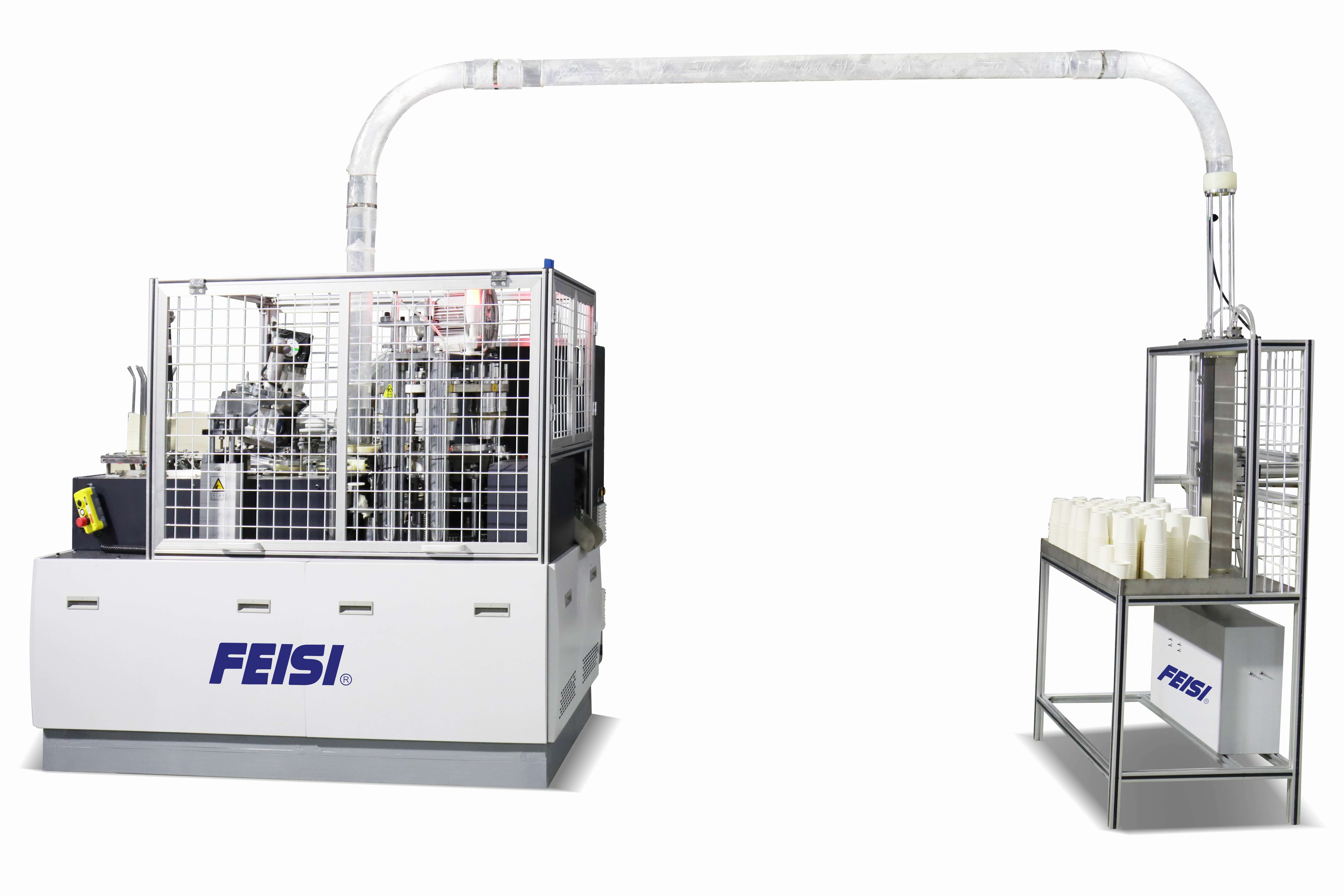

 High Speed Paper Cup  Machine with Seperate Cups Collection Unit:



 Double Wall Hot Cups Corrugated Sleeve Making Machine:




Our Worshop:
