Fully Automatic Paper Bag Making Machine

Main Functions of Paper Bag Making Machine

1. The automatic paper bag machine is used for primary color paper or printed roll paper to complete the production of square bottom paper bags at one time.

2. The automatic paper bag machine can produce paper bags of various specifications, with fast speed and high production efficiency, and is an ideal equipment for paper bag production.

3. Reel unwinding (hydraulic feeding, automatic deviation correction, constant tension), side gluing, printing paper electric eye tracking, base paper forming, fixed-length traction and cutting, bag bottom indentation and bottom opening, bag bottom glued bottom forming, out of the bag finishing and other components.
The whole of paper bag making machine is centrally controlled by the PLC touch screen, and the length of the paper bag is controlled by the servo motor.

4. According to customer needs, 2-color or 4-color printing machine, bag surface window filming device and handle hole device can be installed.

5. It can be equipped with round rope, flat rope handle machine, round rope rewinding machine, etc., to make the products more competitive and diversified.

Main Configuration of Paper Bag Making Machine

No.	Model	FS-SQB-220	FS-SQB-280	FS-SQB-330	FS-SQB-450	FS-SQB-540
1	Paper Roll Length（C）	190-370mm	270-530mm	270-530mm	270-530mm	400-770mm
2	Paper Bag Length（L）	150-320mm	225-470mm	225-470mm	210-460mm	320-680mm
3	Paper Bag Width（W）	80-220mm	120-280mm	150-330mm	220-450mm	250-540mm
4	Paper Bag Bottom Width（H）	50-120mm	60-180mm	60-180mm	80-220mm	120-260mm
5	Mother Paper Roll Width	280-710mm	380-950mm	450-1050mm	630-1370mm	770-1630mm
6	Kraft Paper GSM	50-130 g/m²	60-160 g/m²	60-160 g/m²	80-160 g/m²	90-160 g/m²
7	Paper Roll Max O.D.	≤Ø1200mm
8	Paper Roll I.D.	Ø76mm（3”）
9C	Machine Produce Speed	≤200pcs/min	≤160pcs/min	≤160pcs/min	≤150 pcs/min	≤120pcs/min
10	Machine Voltage	380V, 50Hz,3phase, other can be ordered!
11	Machine Install Power	10kw	12kw	12kw	15kw	18kw
12	Machine Weight	6000kgs	7000kgs	8000kgs	10000kgs	11500kgs
13	Machine Size	9x3.2x1.8m	11x3.6x1.9m	11x3.7x1.9	11x3.8x1.9m	15x3.8x2.4m

Any special requirements can be ordered with us!

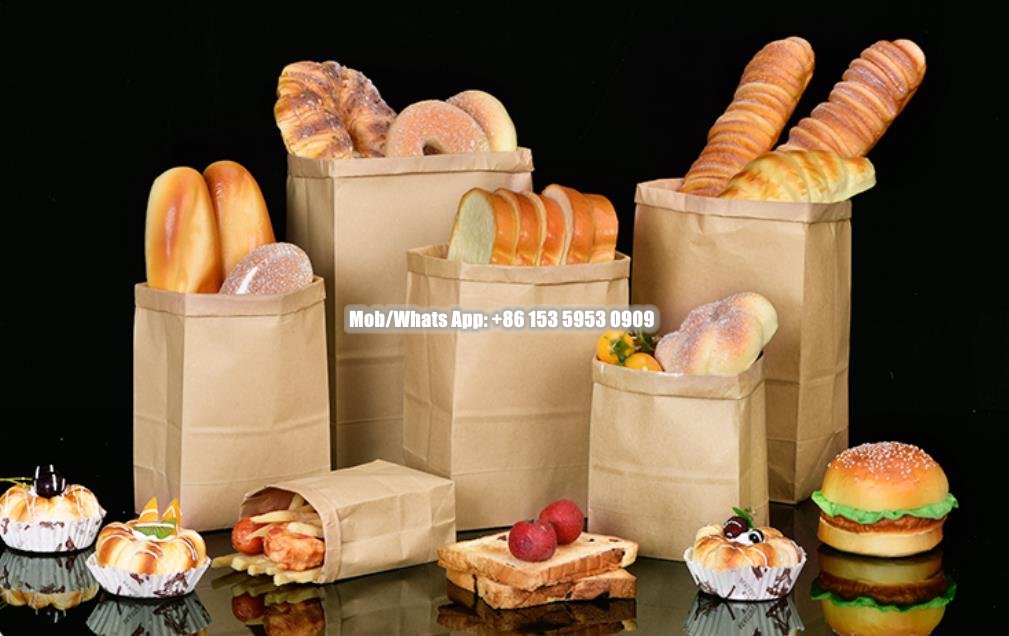

1. Automatic Square Paper Bag Making Machine:

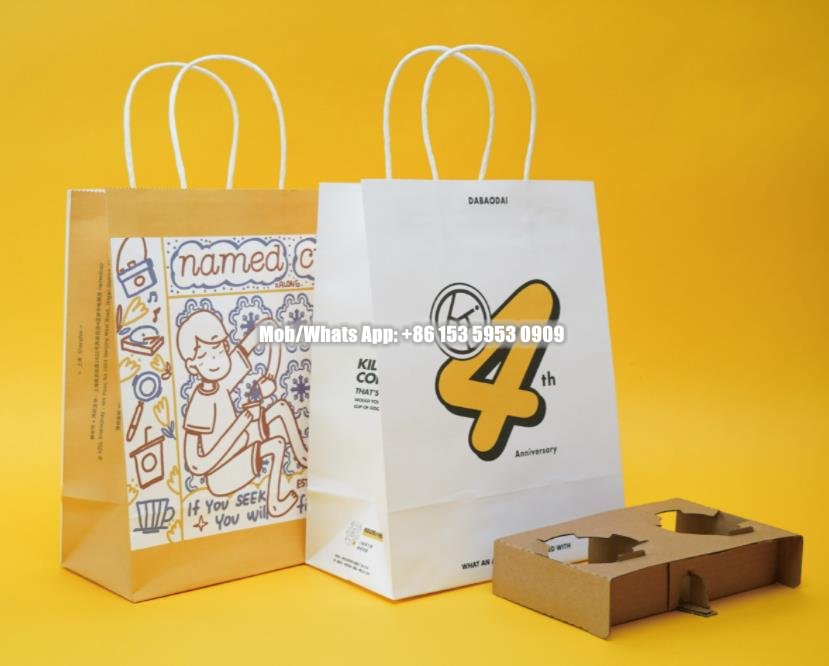

2. Fully Automatic Paper Bag Making Machine with Round Rope Handle Gluing on Line
