Automatic Paper Lids Making Machine

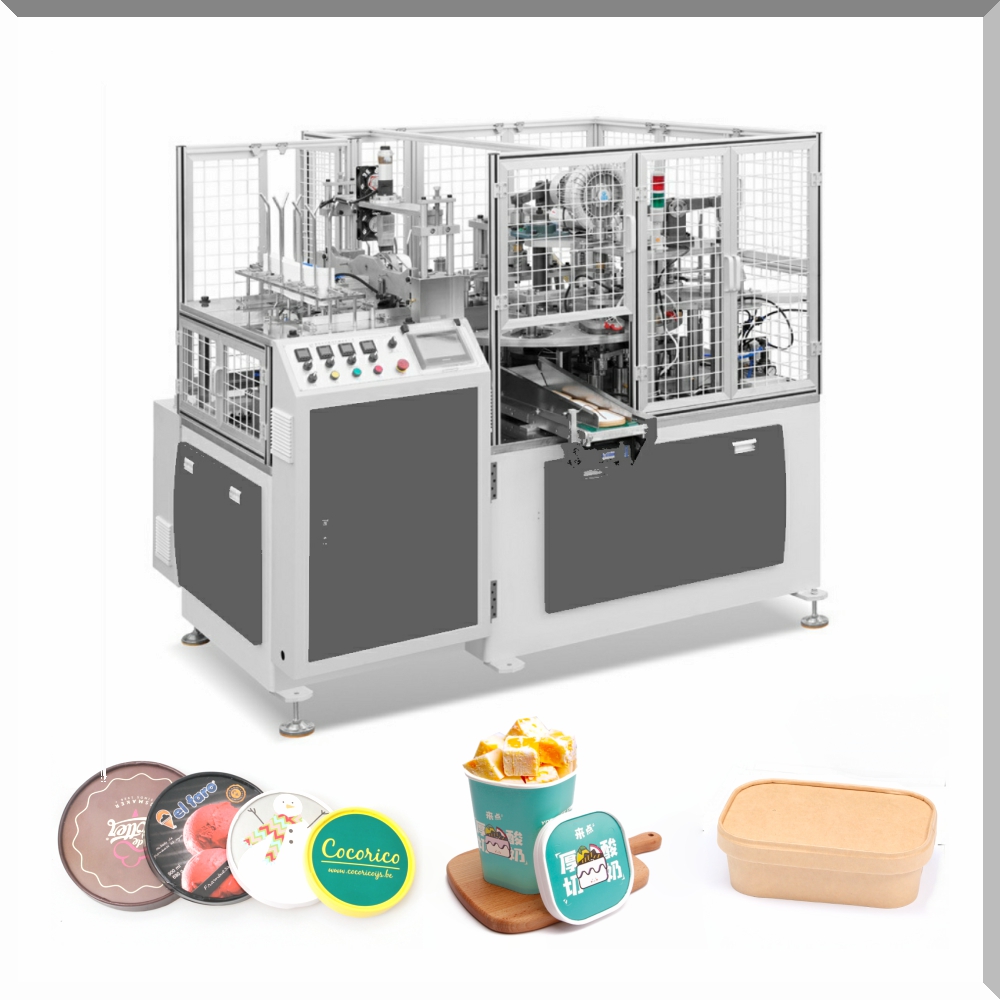

Automatic Paper Lids Making Machine

Main Features:

1.Patent equipment, high speed running.

2.Automatic paper leaves and bottom paper feeding unit.

3.Auto creasing(guide line),

4.Auto emboss (logo and shape on lid top, also make cross cut),

5.Auto punching(cut roll paper to lid disc),

6.Lid made by one paper disc, save cost.

7.PLC control + servo motor feed paper

8.Open cam + shaft + cam + gear control movement, stable and reliable.

Main Specification of Paper Lids Machine:

Item	Main Specifications
Machine Model	FS-PL-126/150/200
Lids Size	Round Lids: Ø50-126mm Round Lids: Ø126-150mm Round Lids:Ø 150-200mm Square Size: Ø50-126mm Rectangle Lids: 120x170mm Please order size before making machine!
Lids Height	15-18mm
Raw Materials	Kraft Paper Coating with PE/PLA (Single Side or Double Sides Coating) Kraft Paper or Pulp Paper Lids Body: Die-cut sheets Lids Bottom: Die-Cut Sheets
Thickness/GSM of Paper	Thickness of Paper:0.400-0.50mm GSM of Paper: 250-350g/m²
Production Speed	40-60Pcs/min, depends on shapes
Bowls Body Bonding Way	By Ultrasonics Welding Head
Control System	Standard: China Top Brand: Innovance Mitsubishi Japan can be ordered!
Installation Total Power	10KW
Voltage	380V,50Hz,3Phase 220V，50Hz,Single Phase Other voltage can be ordered!
Compressor Air Supply	0.6-0.8MPa、0.4m³/min Prepared by Customer
Machine Size	2600 x 1650x 2000mm
Machine Weight	3TONS
