Paper Tubes& Cans Machine

Chips Cans/Snack Cans Flanging and Curling Machine

  • Product ID:Paper Tubes& Cans Machine
  • QQ:
  • Phone: +86 15359530909
  • Tel: +86 1535 9530909
  • Email: info@feisimachine.com
  • Time: 2022-01-25 22:44
  • INQUIRY

FS-OBE360

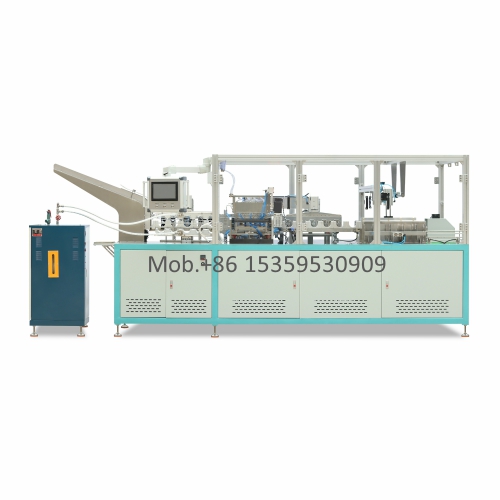

Highly Speed Automatic Chips Cans Flanging and Curling Machine
(Horizontal Type Easy-open Cans Making Machine)
(Outward Bending/Mouth Expander /Cleaning All-in-One Machine)

Main Features

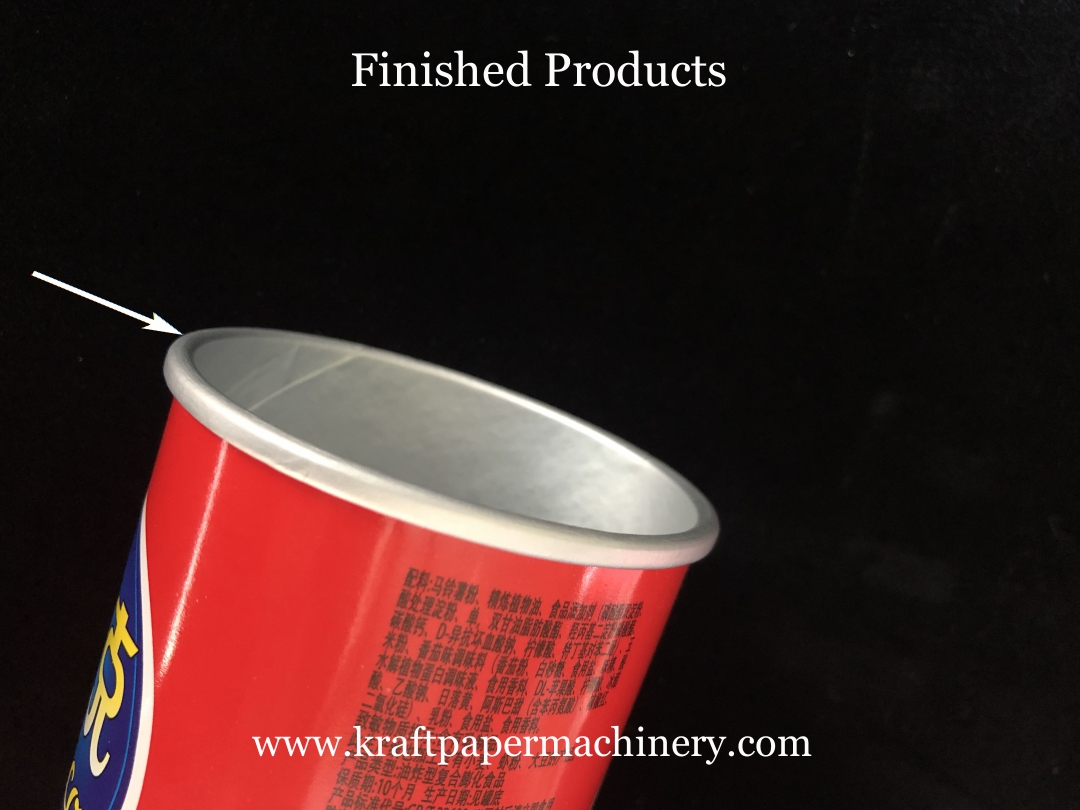

Applications:It mainly used for process chips paper cans or Snack Cans.

1.With 5 position of molds which work simultaneously.The output  can reach 60pcs/min, humidification-lubrication-molding-mouth expanding-cleaning-turning cans, synchronous automatic operation, suitable for potato chip can production in large quantities.
2.It's equipped with automatic lubrication system of mold, with high precision and adjustable injection volume, no oil residue in the mouth after molding, effectively improving the molding reliability.
3.The main body adopts high-strength square steel and aviation aluminum profile protection framework, which is compact, simple and beautiful to meet the food grade requirements and health requirements of various industries.

Main Specifications

Item Specifications
Tubes Diameter Ø52-83mm,please order I.D.73 or 65mm is standard size
Tubes Length 110-260mm
Tubes Thickness 0.7-0.9mm,please order
Working Speed 55-60pcs/min
Machine Motor 5Kw
Machine Voltage 380V,50Hz,3Phase
Machine Size 3800x1600x1800mm
Machine Weight 800kgs

Remarks:More informations and special requirements feel free to contact us!

Video: Chips Cans Production Line



Video : only this machine



CONTACT US

QQ:

Phone: +86 15359530909

Tel: +86 1535 9530909

Email:info@feisimachine.com

Add: Quanzhou City, Fujian Province,China
