Paper Tubes Paper Cans Machine

Automatic Cans Paper Tubes Labelling Machine

Product ID：Paper Tubes Paper Cans Machine
QQ：
Phone: +86 15359530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2024-08-01 22:40
INQUIRY

FS-L350/500/600/650

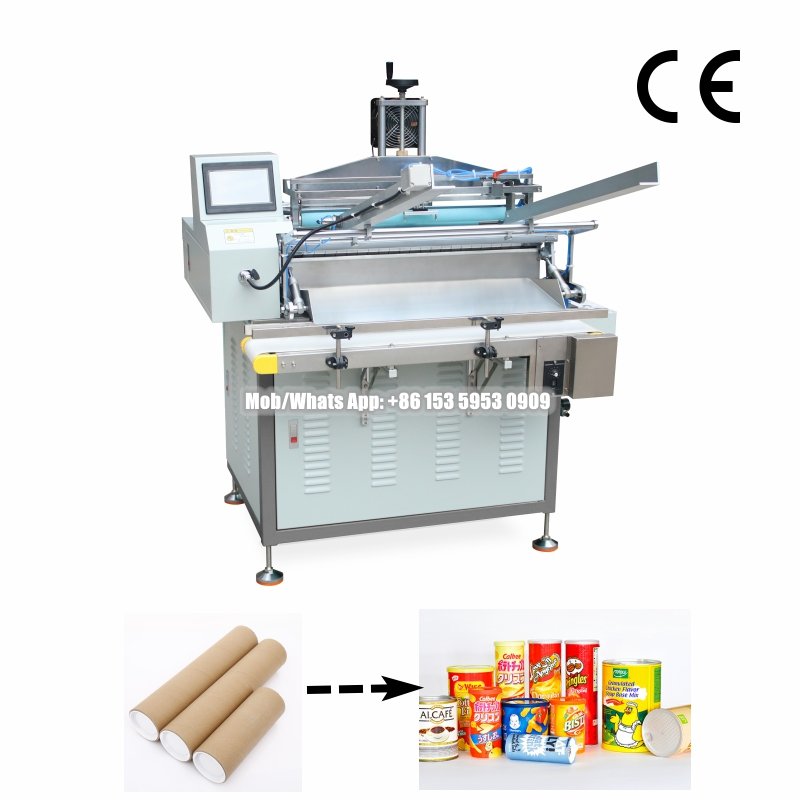

Automatic Paper Tube Paper Cans Lebelling Machine

Main Features

1.Application Fild: It is mainly used for paper tube label. It can apply glue to both ends or full page of the labels.

2.No need to change any mold parts, just adjust the positioning of labels and tubes and set the specification data through the human-machine interface.

3.During operation, only the labels need to be put into the standard library in batches. Photoelectric automatic detection of paper tubes, marking, gluing, labeling and automatic tube falling can be completed by the machine in one second.

4. Adopt PLC control system and touch screen, with simple setting and convenient operation.

Main Specifications

Model	FS-L350	FS-WL580A/ FS-WL580B-Auto	FS-WL600	FS-WL720B-Auto
Tubes Height/Length	80-350mm	80-580mm	80-600mm	80-720mm
Tubes Diameter	Ø28-126mm	Ø28-126mm	Ø28-126mm	Ø28-126mm
Labels GSM	128-157g	128-157g	128-157g	128-157g
Glue Type	Hotmelt Glue	Water-based Glue	Hotmelt Glue	Water-base Glue
Labeling Speed	20-35pcs/min	20-35pcs/min	20-35pcs/min	20-35pcs/min
Machine Voltage	220V,50Hz,Single	220V,50Hz,Single	220V,50Hz,Single	220V,50Hz,Single
Machine Power	2.3Kw	3Kw	3.3Kw	3.7Kw
Machine Size	1000*90x135mm	100090135mm	130090135mm	130090135mm
Machine Weight	300kgs	340kgs	360kgs	400kgs

Remarks:More details and special requirements feel free to contact us!

1. Tiny Tubes Labelling Machine:

2. Hotmelt Gluing Model:Remarks: the Vertical Turnning -Up conveyor should be ordered when you
need it connect to fully production line

3.Water base Glue:Semi Automatic Model: FS-580A

4. Water Base Glue-- Automatic Model: FS-580B

5. Water Base Glue-- Automatic Model: FS-720B
