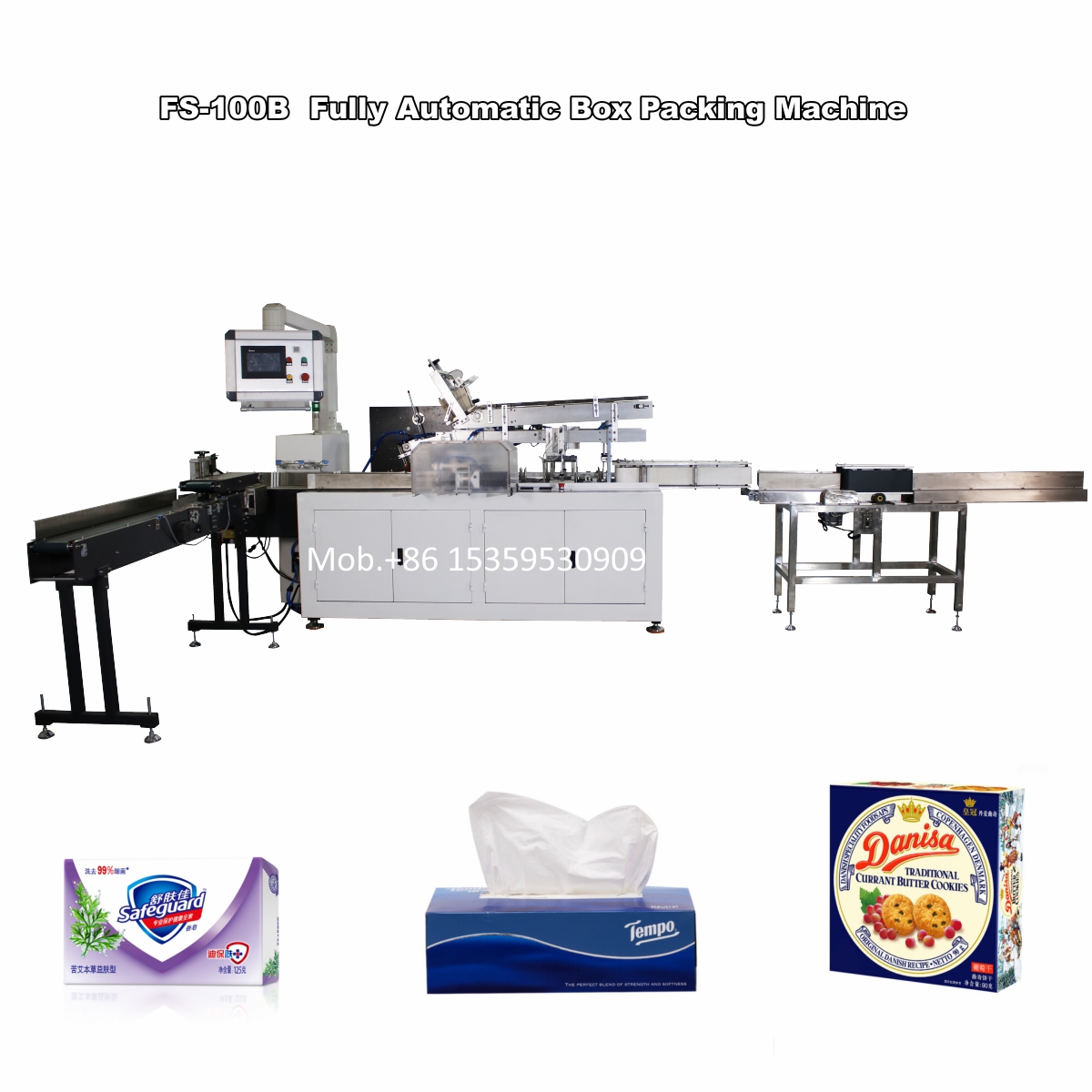

FS-100B High Speed Fully Automatic Paper Box Packing Machine

Applications：
It's for Tissue paper box /Towels box/Napkins/Nonwoven Fabrics box, leisure food box/snacks box/cookies Box/coffee power box, toys box , stationery box, electronics part box, hardware, electrical appliances, mask cosmetic box, sanitary goods boxes, medicine carton box packaging sealing.
Main Features:
1. It adopts packing forms such as automatic feeding, box opening, boxing, batch numbering (optional), dispensing (optional for spraying), box sealing, etc., with compact and reasonable structure and easy operation and adjustment
2. Servo motor, touch screen, and PLC programmable control system are adopted to make the display operation of the man-machine interface clearer and easier, with a high degree of automation and more humane
3. The use of automatic material sorting and conveying mechanism is convenient for linkage production with automatic production lines, which can greatly reduce labor costs;
4. The photoelectric eye automatic detection and tracking system is adopted, which cannot empty the box and save packaging materials;
5. Large range of packaging, easy adjustment, fast conversion between various specifications and sizes;
6. There is no need to change the molds in large quantities, only adjustment or replacement of individual parts can be used.
7. It adopts automatic shutdown and overload protection device for main drive motor when the articles are not in place, making it safer and more reliable to use;
8. According to customer requirements, a flip-up safety cover is adopted for easy operation and beautiful appearance.

Main Configurations:

Item	Specification
Packing Size	Length：100-240mm Width： 100-120mm Height：30-100mm
Design Speed	100Boxes/min
Packing Speed	80-100Boxes/min
Cardboard Paper GSM	300-450g
Adhesive Materials	Hotmelt Glue or Box Glue
Glue Capacity	1.5kgs
Heating Temperature	180-200°C
Air Supply	0.5-0.8Mpa
Machine Power	Main Motor:1.5Kw Feeding Motor：0.75Kw Heating Motor：3.5Kw
Machine Voltage	380V,50Hz, 3 Phase / 220V.50Hz, Single Phase
Machine Size	3200x1300x1800mm
Machine Weight	1500kgs
