Face Mask Machines

Automatic Face Masks Making Machine with 2 Output Line

Product ID：Face Mask Machines
QQ：
Phone: +86 15359530909
Tel: +86 1535 9530909
Email: info@feisimachine.com
Time: 2020-10-14 03:30
INQUIRY

High Speed 3 Layers Face Masks Production Line(With 2 set of Earsloop Welding Machine)

Main Configurations of 3Layers Face Masks Machine
(1) Equipment size: 6500mm (L) × 4500mm (W) × 1900mm (H);
(2) Appearance color: warm gray, according to this standard without
special instructions; if the color is changed, the written consultation
document between the two parties shall prevail.
(3) Equipment weight: ≤5000kg, ground load ≤500KG / m2;
(4) Working power: equipment 220VAC ± 5 ﹪, 50HZ, rated power about
9KW;
(5) Compressed Air: 0.5 ～ 0.7 MPa, the use flow rate is about 300L /
min;
(6) Operating Environment: no flammable and corrosive gas, no
dust.(cleanliness is not less than 100,000).

Main Functions of 3Layers Face Masks Machine
(1) Equipment production speed: 80-100 Pcs / minute
(2) Production efficiency: 100-110ppm;
(3) Qualification rate of equipment production: 99% (except when the
incoming materials do not meet the requirements, or the employees
improperly operate).
(4) Equipment failure rate: 2% (refers to the failure caused by the
equipment itself).

More information feel free to contact us!

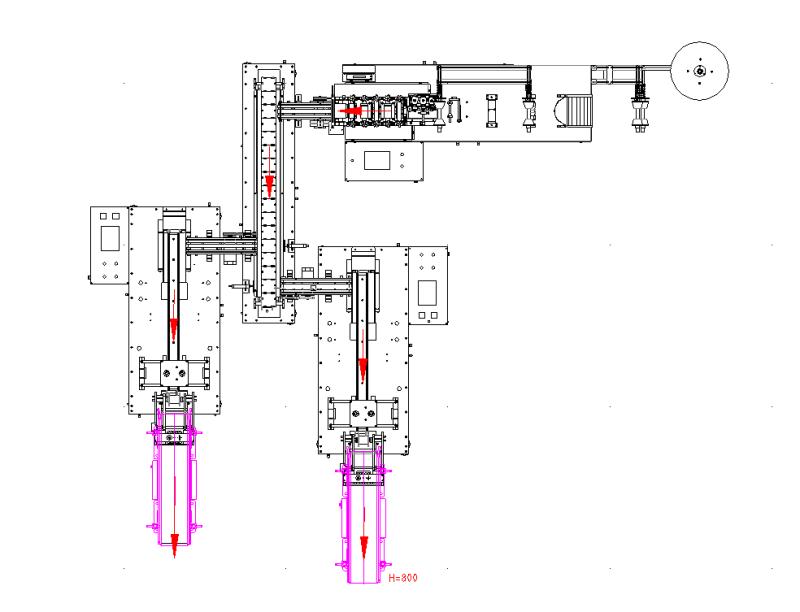

Production Line with 2 EarsLoop Welding Machine:
