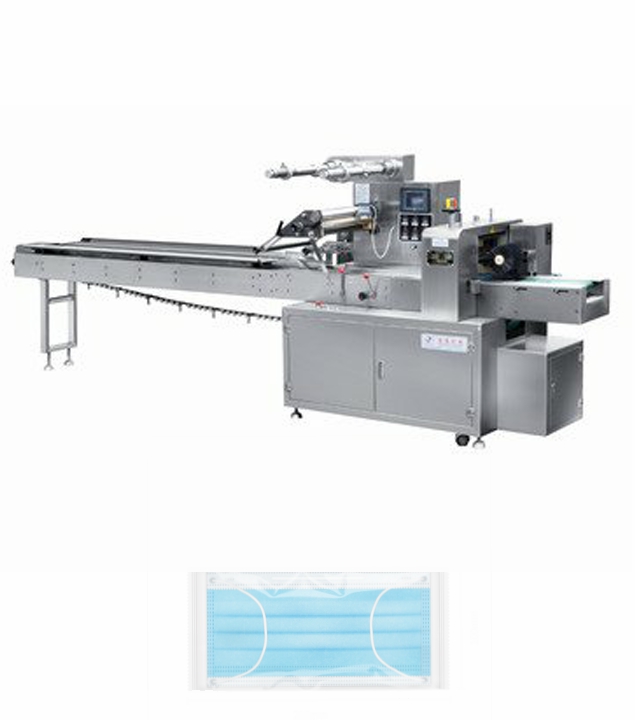

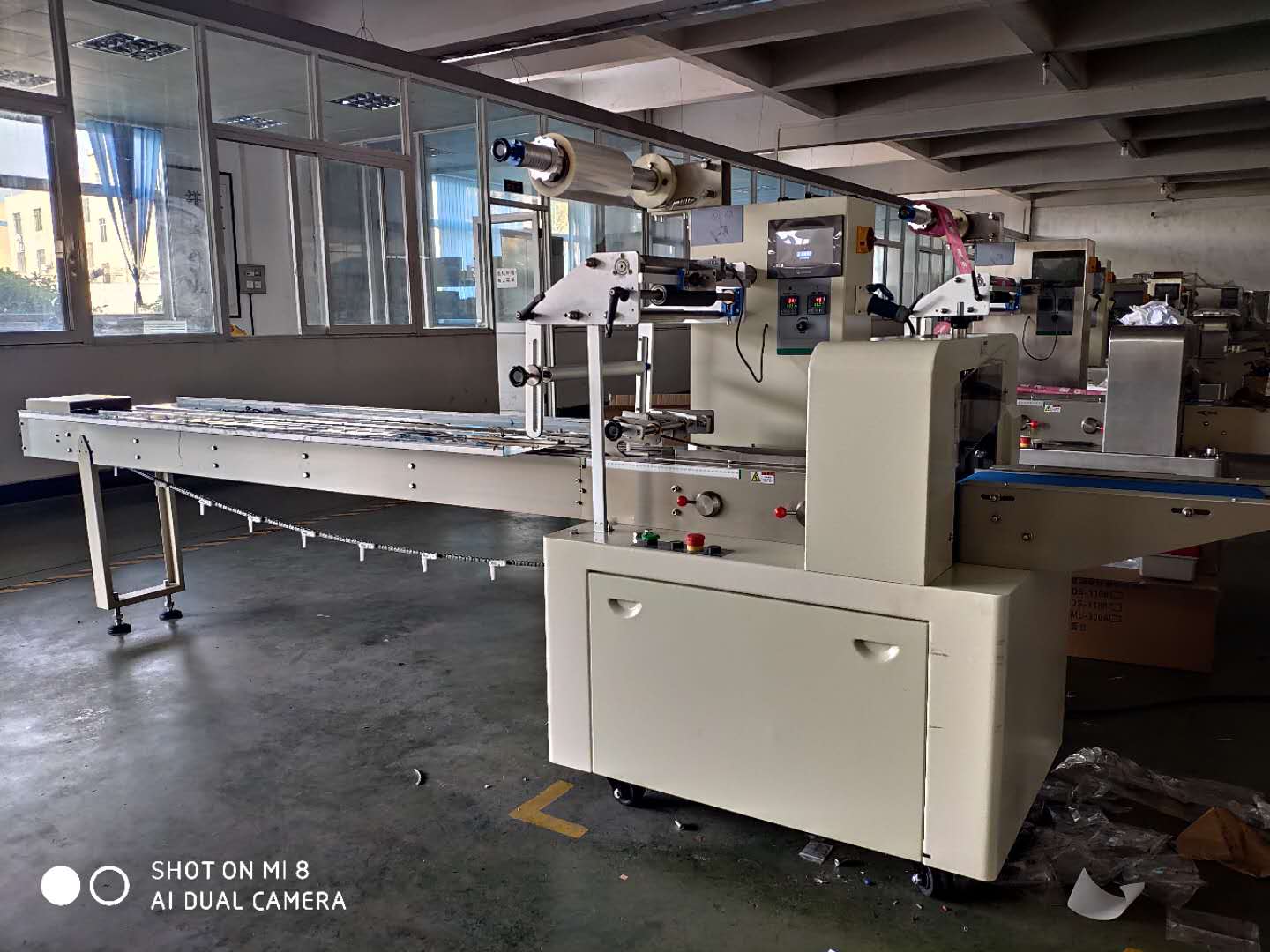

Main features of three-servo Plastic Bags Packing Machine:



● The machine has a beautiful and compact structure design, three-servo control, stable operation, simple and convenient maintenance, low failure rate and low noise. Intelligent large touch screen and independent control system of digital display temperature control meter, parameter setting is simple and intuitive, brand-name color code electric eye tracking system, accurate sealing and cutting position, high control precision. The supporting paper is automatically centered, and the operation of changing products is convenient.

● The electrical design is rationalized, servo control, electronic knife speed, no empty bag function, anti-cutting function, parameter storage function, one-key product change, and stronger automation.

● Economical mechanical design, simple installation and debugging, stable and durable, and provide productivity.

Main Specifications of Plastic Bag Packing Machine
PACKING SPEED (BAGS/MIN) 35-150
PACKING FILM WIDTH(MM) 90-350
PACKING BAG SIZE long (flat bag) L 65-500
Wide W 35-160
Packaging products high H 5-50
TOTAL POWER (KW) 4.8
Main motor power (kw) MAIN MOTOR POWER 0.75+0.75+1.5
Heating power (kw) HEATING POWER 2.1
Machine net weight (kg) MACHINE NET WEIGHT 530
Machine dimensions (length×width×height) (mm)
MACHINE DIMENSION (LXWXH)(MM) 4000×920×1500

Machine noise (dB)
NOISE (db) ≤78dB
Qualified rate of bags (percentage)
Percent of pass finished bag ≥97%
Sealing pressure (Newton/mm2)
Seal pressure Newton/mm 15
Power supply type POWER SUPPLY 220V 50Hz
Packaging film materials FILM MATERIAL OPP/CPP, PT/PE, KOP/CPP, aluminum film, etc
More information feel free to contact us!
